22 Jutaan
FREEGO 125 SERIES
Varian Warna
Biru (Std)
Merah (Std)

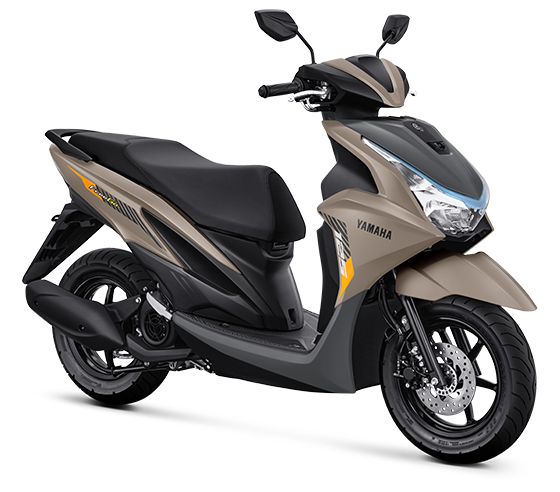

Sand (Std

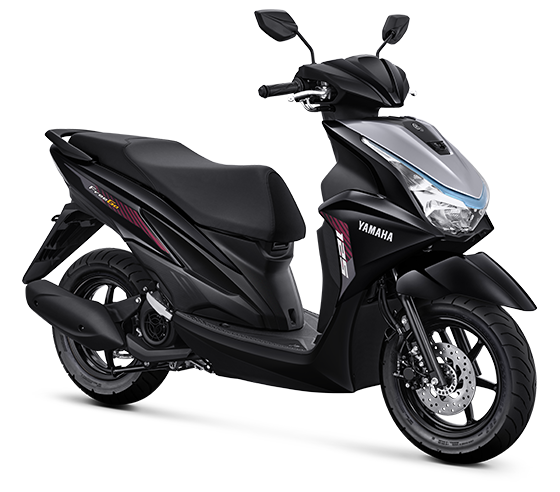

Hitam (Std)

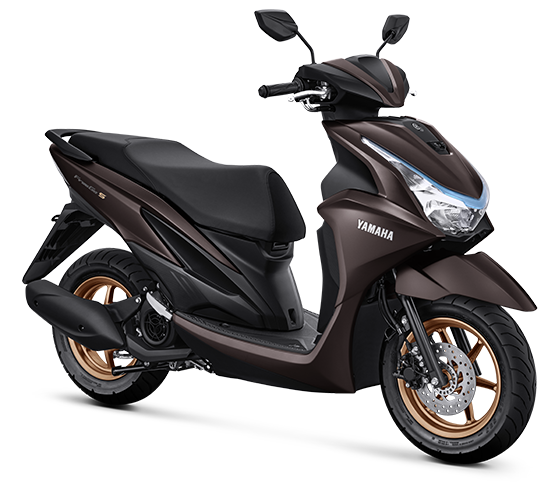

Magma Black (S)

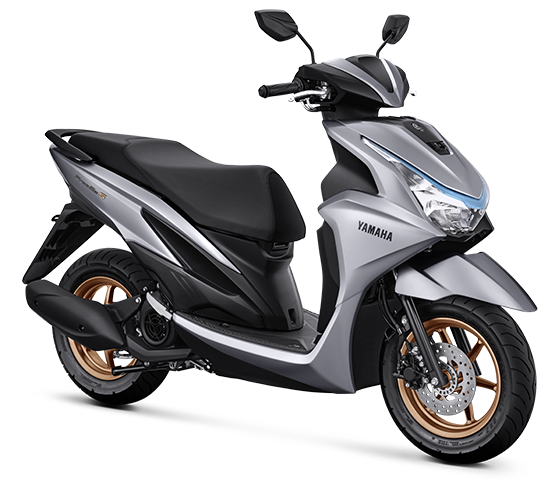

Silver (S)
FREEGO 125 SERIES
SPECIFICATIONS
Mesin
| Tipe Mesin | : | Air Cooled 4-Stroke,SOHC |
| Susunan Silinder | : | Single Cylinder |
| Diameter x Langkah | : | 52,4 x 57,9 mm |
| Perbandingan Kompresi | : | 9,5 : 1 |
| Volume Silinder | : | 125 cc |
| Daya Maksimum | : | 7,0 kW / 8000 rpm |
| Torsi Maksimum | : | 9,5 Nm/ 5500 rpm |
| Sistem Starter | : | Electric Starter |
| Sistem Pelumasan | : | Wet Sump |
| Kapasitas Oli Mesin | : | Total = 0,84 L ; Berkala = 0,80 L |
| Sistem Bahan Bakar | : | Fuel Injection |
| Tipe Kopling | : | Dry, Centrifugal Automatic |
| Tipe Transmisi | : | V-belt Automatic |
Rangka
| Tipe Rangka | : | Underbone |
| Suspensi Depan | : | Telescopic Fork |
| Suspensi Belakang | : | Unit Swing |
| Ban Depan | : | 100/90 – 12M/C 59J – Tubeless |
| Ban Belakang | : | 110/90-12M/C 64L – Tubeless |
| Rem Depan | : | Disc Brake |
| Rem Belakang | : | Drum Brake |
Dimensi
| P x L x T | : | 1905 x 690 x 1115 mm |
| Jarak Sumbu Roda | : | 1275 mm |
| Tinggi Tempat Duduk | : | 780 mm |
| Berat Isi | : | 101 Kg (FreeGo 125), 102 Kg (FreeGo 125 Connected) |
| Kapasitas Tangki Bensin | : | 4,2 L |
| Jarak Terendah ke Tanah | : | 135 mm |
Kelistrikan
| Tipe Busi | : | NGK/ CR6HSA |
| Sistem Pengapian | : | TCI |
| Battery | : | YTZ4V, GTZ4V, NTZ4V (FreeGo 125), YTZ6V (FreeGo 125 Connected) |
